GATEMATE Adjustable Steel Gate Frame Kit

GATEMATE®+Adjustable+Steel+Gate+Frame+Technical+Data+Sheet+&+Instructions

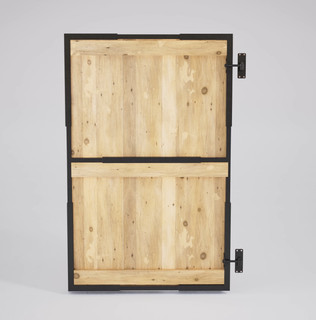

The GateMate® Adjustable Steel Gate Frame Kit, is a fully adjustable, high quality, robust solution for creating sturdy timber gates. Ideal for build-on-site gates, with bespoke sizes.

The vertical and horizontal joints fit together so that the width and height of the gate may be increased or decreased telescopically.

Height max: 1950mm
Height min: 1250mm
Width max: 1200mm
Width min: 700mm

Included with Kit:
• 4 x Steel Corner Joints
• 2 x Steel Center T-Joints
• 2 x Top/Bottom Telescopic Connectors
• 1 x Center Telescopic Connector
• 2 x Hook-on-Plates
• 2 x Gate Eyes + Washers, Nuts & Bolts
• 8 x C/Sunk Wood Screws (6 x 50mm)
• 13 x Wafer Head Timber Screw (6 x 100mm)
• 10 x Grub Screws
• 8 x Hex Head Self-Drilling Screws

CARTON SIZE
880mm (length) x 480mm (width) x 120mm (depth).

CONSTRUCTION

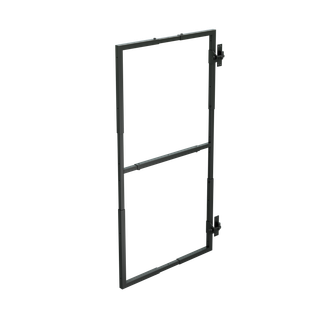

The steel frame is manufactured from box section steel. Outer telescopic parts are formed with 35mm x 35mm square hollow section, and inner telescoping parts from 30mm x 30mm square hollow section. Corner joints and T-joints are formed with full welds, finished and polished before coating.
